Winch Strap Assemblies
 LoadGardÔ Yellow Standard Treated Webbing
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Flat Hook (FH) |
2" |
20 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS220FH-Y |
|
2" |
27 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS227FH-Y |
|
3" |
27 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS327FH-Y |
|
3" |
30 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS330FH-Y |
|
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427FH-Y |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430FHCR-Y |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Delta Ring (DR) |
2" |
20 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS220DR-Y |
|
2" |
27 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS227DR-Y |
|
3" |
27 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS327DR-Y |
|
3" |
30 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS330DR-Y |
|
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427DR-Y |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430DR-Y |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |

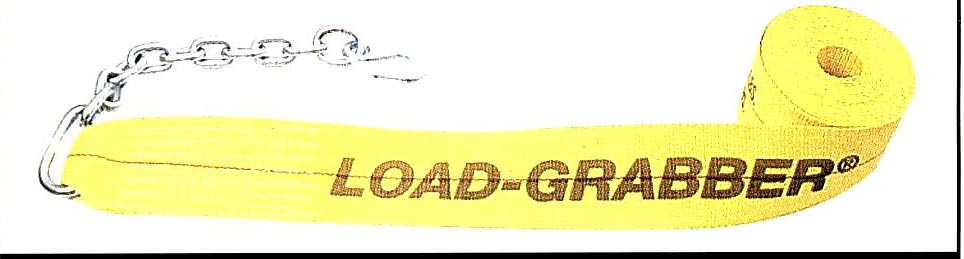

| Chain & Grab Hook (CG) |
3" |
27 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS327CG-Y |
|
3" |
30 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS330CG-Y |
|
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427CG-Y |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430CG-Y |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Triangle & Grab Hook (TH) |
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427TH-Y |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430TH-Y |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Looped End (LE) |
4" |
30 ft. |
16,000 lbs. |
5,335 lbs. |
CRCRWS430LE-Y |
WearGardÔ Orange Premium PVC Impregnated Webbing
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Flat Hook (FH) |
2" |
20 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS220FH |
|
2" |
27 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS227FH |
|
3" |
27 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS327FH |
|
3" |
30 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS330FH |
|
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427FH |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430FH |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Delta Ring (DR) |
2" |
20 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS220DR |
|
2" |
27 ft. |
10,000 lbs. |
3,335 lbs. |
CRWS227DR |
|
3" |
27 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS327DR |
|
3" |
30 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS330DR |
|
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427DR |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430DR |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Chain & Grab Hook (CG) |
3" |
27 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS327CG |
|
3" |
30 ft. |
13,000 lbs. |
4,335 lbs. |
CRWS330CG |
|
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427CG |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430CG |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Triangle & Grab Hook (TH) |
4" |
27 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS427TH |
|
4" |
30 ft. |
15,000 lbs. |
5,000 lbs. |
CRWS430TH |
|
End Fitting |
Width |
Length |
MBS* |
WLL* |
Part # |
| Looped End (LE) |
4" |
30 ft. |
16,000 lbs. |
5,335 lbs. |
CRWS430LE |
*MBS = Minimum Break Strength; WLL = Working Load Limit
Longer or shorter lengths are available on all webbing assemblies. All 3" and 4" winch strap assemblies are California
rated and approved.
|
